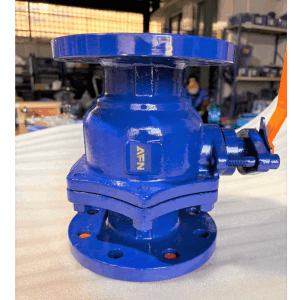

Fluorine-Lined Ball Valve
AFN
Product
- Fluorine-Lined Ball Valve

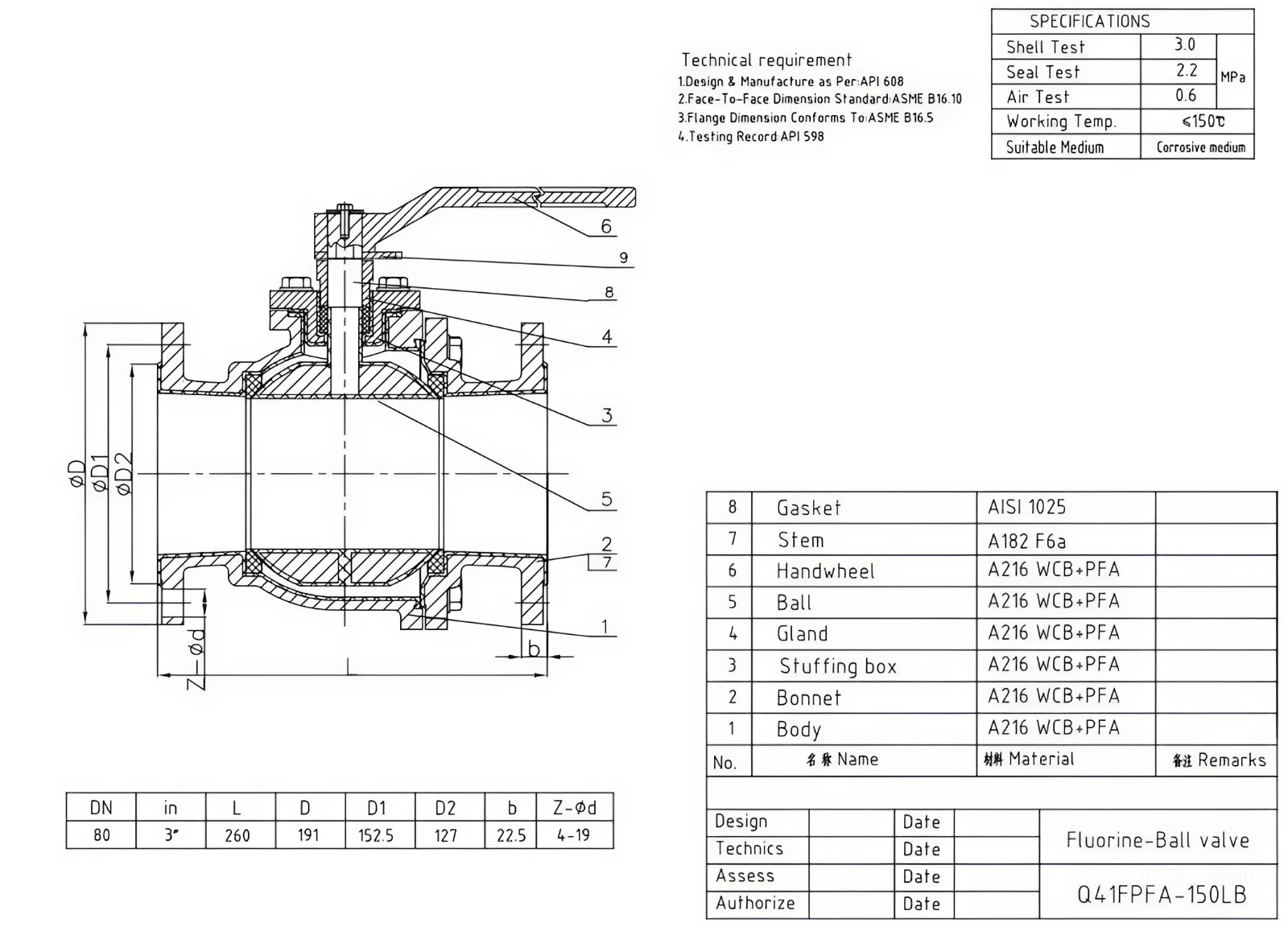

Technical requirement
- Design & Manufacture as Per: API 608
- Face-To-Face Dimension Standard: ASME B16.10
- Flange Dimension Conforms To: ASME B16.5
- Testing Record: API 598
Specifications
- Shell Test : 3.0 MPa
- Seal Test : 2.2 MPa
- Air Test : 0.6 MPa
- Working Temp. : ≤150°C
- Suitable Medium : Corrosive medium
Remarks
- All valves are designed, manufactured, and tested in accordance with applicable international standards.
- Pressure testing is conducted as per API 598 requirements.
- Suitable for applications involving corrosive service media.
