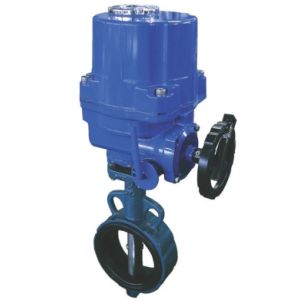

GQ-010~300
Electric Actuator
Description
GQ series electric actuator is specially.
Designed for quarter turn operating.
Applications such as Ball, Butterfly, Plug Valves, Dampers and similar usages.
Features
- Compact and not heavy due to high grade Aluminum alloyed housing.
- Hard anodizing for High corrosion resistance on inside & outside.
- Various output torque from 100Nm to 3000Nm.
- Wide range of Voltage.
- Self locking function in the transmission.
- Manual operation Hand-Wheel engaged by Manual / Auto lever arranged for power drive folding Handle. (Space-Saving & Protection from Impact)
- Standard Mounting. (ISO 5211)
- Standard 4 limit switches. (2 for operation, 2 for extra (Dry contacts))
- Torque switches. (GQ-016~300)
- Space heater with thermostat for preventing overheat.
- Removable drive bushing with under hung for easy machining and tight connection.

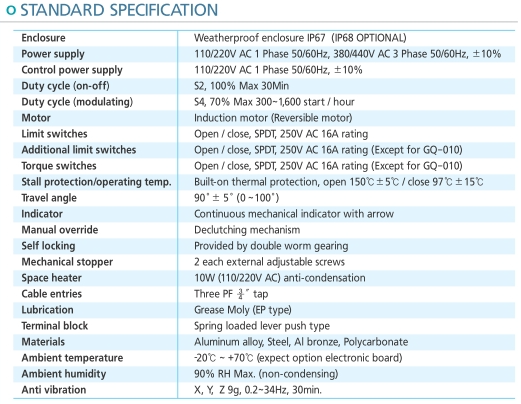

Specifications
