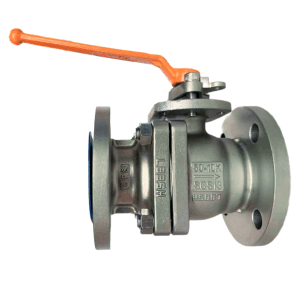

• Fully Welded Ball Valve - Q41Y-10K

Design Standards:

• API 608
• ASME B16.10 (Face-to-Face)
• JIS B 2220 (Flange Standard)
• API 598 (Inspection & Testing)

Pressure Rating & Testing:

• Nominal Pressure: 10K
• Shell Test Pressure: 3.03 MPa
• Seat Test Pressure: 2.20 MPa
• Gas Seat Test: 0.6 MPa

Operating Temperature:

• -101°C to 325°C

Applicable Media:

• Water
• Gas
• Oil
• Industrial fluids

PRODUCT FEATURES

1. Fully Welded Body Construction

• Fully welded design ensures maximum strength
• Leak-proof performance
• Ideal for high-pressure and critical applications

2. Premium Corrosion-Resistant Materials

• Body & Bonnet: SCS13 Stainless Steel
• Ball: SCS13 with Hard Chrome coating
• Seat Ring: SCS13 with Hard Chrome

3. Superior Sealing Performance

• Packing: Flexible Graphite
• Gasket: Spiral Wound Gasket
• Additional Graphite Ring for enhanced sealing

4. High Pressure & Temperature Resistance

• Tested according to API 598
• Stable performance under extreme conditions

5. Low Maintenance Design

• Welded construction reduces leakage risk
• Durable components for long service life
