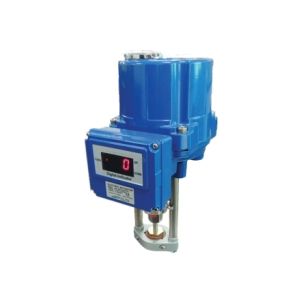

GEA-55/100PD(L)W
Electric Actuator
Features
• Proportional or On-Off Electric Linear Actuator
• Self-Calibration using the auto setting button
• Digit indicator (FND and LED lamp)
• Vary options available
- Local/Remote control unit
- Integral motor starter
- Additional limit switch for feedback
- Position transmitter etc
• Perfect enclosure(IP67) against rain, water, moisture
or dust.
• Simple & easy manual override with handle-wheel
• Selectable input signal 4~20mA , 0-10VDC or 2-10VDC
• Applied into Heating, Ventilation, Air conditioning or
Ice thermal storage system

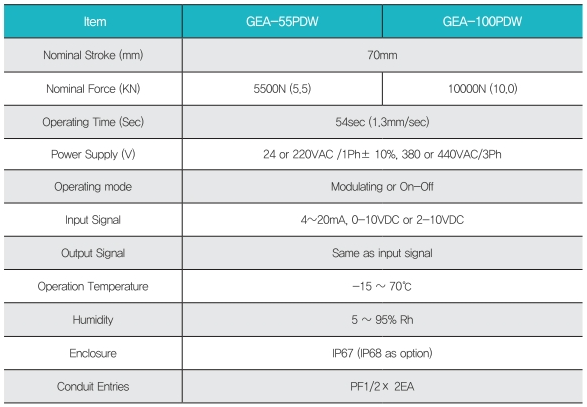

Specification
