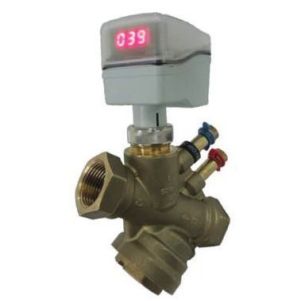

GEA-015P(D)
Electric Actuator
Features
- Direct coupled installation without tools
- Compact size allows installation in limited space
- Modulating control
- No mounting tools required
- Manual override with hexagonal wrench 4 mm
- Visual position indication
- Ready-to-wire connecting cable (1.5m cable)
- Receives 0-10VDC or 2-10VDC input signal
- Valve is closed automatically in case input signal is removed or failed.
- Self-calibration function : Actuator run a self-calibration automatically once a day. It is used to prevent the valve sticking when the valve is not used for a long time while the power is on. Selected by dip switch

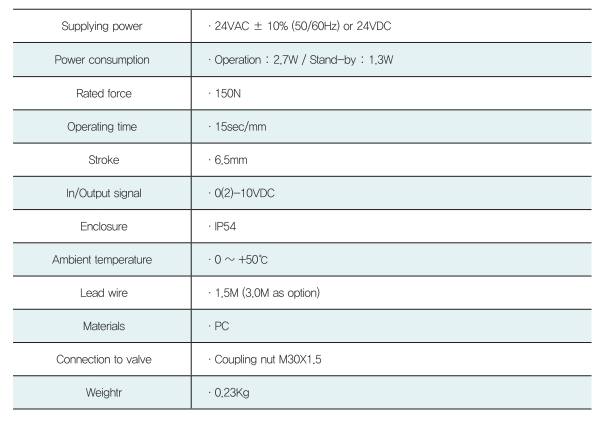

Specification
